how stone become superfine powder---Clirik HGM micro powder grinding mil...

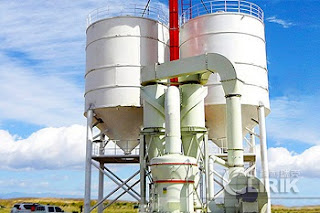

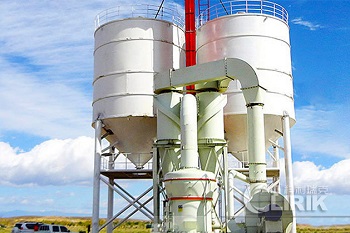

Clirik stone powder production line set up in Oman

Clirik superfine powder grinding mill can be used in more than 300 kinds of minerals powder 50-3000 mesh processing, such as: #calcium_carbonate, #limestone, #mica, #kaolin, #gypsum, #calcite, #dolomite, #carbon_black, #cement, #china_clay, #talc and so on.

More details welcome to visit our websit

https://www.clirik.com

https://www.raymondmill.in

Clirik CLUM Vertical Roller Mill Powder Production Line for Cement Plant

clum series vertical roller mill machine, the fineness 500-2500 mesh adjustable , capacity 5-45 TPH, compared to the superfine grinding mill , vertical mill has a higher percentage of 2-micron content.
if you are interested in this machine, please contact us by :
WeChat / WhatsApp / phone : 008613917147829

Carbon black production line technology progress

Recently years, Shanghai Clirik reactor and the reaction process have continuous improvement.

Carbon black reactor is the core part of oil furnace carbon black production line, improving the carbon black reactor structure and reaction process is to change the product performance and the measures to increase the yield and the yield of raw oil.

1, improve the single furnace production capacity, reduce power consumption and other expenses plant construction unit production capacity of investment and operation, thereby reducing the cost of carbon black production line, the current single-furnace production capacity has reached 40,000 -5 tons / year.

2, Improve flame temperature can accelerate the generation of carbon core, improve product quality and yield. Due to the restrictions of refractories, current temperature is generally 1900 ℃, up to 2100 ℃.

3, In the oil furnace carbon black production apparatus, the use of oxygen enriched air or pure oxygen substitution process air, can significantly reduce the amount of flue gas and exhaust, to improve the production capacity of the device, reducing the amount of quench water, improved exhaust heat value. Now using the oil furnace carbon black production line apparatus of the oxygen content of 27% of the oxygen-enriched air, has been reported.

4, improve feedstock atomization process, multi-point fuel injection, irregular injection, various additives or activation agent means to improve product performance and improve yield.

5, water jacket with metal pipes, in order to solve the high-temperature, high-speed flame gas pipes easily deformed under erosion problems.

Shanghai Clirik Machinery devoted to provide carbon black processing and grinding solution. We have many successful cases over 20 countries. Any needs, please leave a message or chat with our one line service now! Our engineers will design the most suitable solution for your project. Shanghai Clirik Machinery welcomes your visit and research!

Shanghai Clirik Machinery Co., LTD

Should you have any questions, please do not hesitate to contact me.

Phone: 0086-21-20236178  008613917147829

E-mail: sales@clirik.com

http://www.carbonblack-process.com

http://www.dolomitegrindingmill.com

http://www.limestonegrindingmill.in

http://www.calciumcarbonategrinding.com

http://www.baritegrindingmills.com

http://www.gypsumgrindingmill.in

Which grinding mill is suitable for grinding carbon black?

Carbon black is quite light, sticky and large volume. Till now, still do not have a grinding mill is quite welcomed and accepted in the carbon black grinding field. Shanghai Clirik Machinery, devoted to carbon black grinding mill andcarbon black production line, researches and produces HGM grinding mill for carbon black grinding. This kind of carbon black grinding mill has high fineness and stable performance, according to our customers' feedback. The whole carbon black production line, is not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.

Here we’d like to introduce some other mills for carbon black grinding.

1. Jet mill: grinding by the air strength, high power consumption but low capacity. If the user wants to grind into fine, more than 800 meshes, for example, the real capacity will be very small, mostly it reduces monthly.

2. Raymond mill, the discharge size can only get 50~325mesh, roller and ring will easily wear, as carbon black is sticky and need a layer between roller and ring. In all, Raymond mill is not suitable for carbon black grinding.

3. Ball mill, better for 50~200mesh powder grinding, worst for grinding carbon black, high power consumption, and worst performance. Most clients won’t use ball mill for carbon black powder production.

HGM series carbon black grinding mill adopts GCr15SiMn for Ring and Roller, which is better than normal 60Si2Mn. So far, it is best grinding mill for carbon black.

Shanghai Clirik Machinery devoted to provide carbon black processing and grinding solution, carbon black processing machine, tyre pyrolysis carbon black grinding, carbon black production line, carbon black grinding mill and other related equipment for sale.

Shanghai Clirik Machinery Co., LTD

Should you have any questions, please do not hesitate to contact me.

Phone: 0086-21-20236178  008613917147829

E-mail: sales@clirik.com

http://www.carbonblack-process.com

http://www.dolomitegrindingmill.com

http://www.limestonegrindingmill.in

http://www.calciumcarbonategrinding.com

http://www.baritegrindingmills.com

http://www.gypsumgrindingmill.in

Carbon black processing line/carbon black production line technology

The main raw materials of carbon black production are oil products and coal tar pitch products. Hydrocarbons through incomplete combustion or pyrolysis formed at high temperatures. Here we would like to introduce carbon black processing line/carbon black production line technology.

Waste tyre pyrolysis carbon black processing line/carbon black production line technology

Through waste tyre pyrolysis plant gets pyrolysis carbon black. Pyrolysis carbon black can be further processed into different sizes by carbon black grinding mill, and broadly used in rubber and painting. This is a green-energy and environmental protection carbon black production line. For more details, check waste tyre pyrolysis carbon black production line.

Lamp black carbon black processing line/carbon black production line technology

The earliest carbon black production line technology is the lamp black carbon black production line technology. In the process, the raw materials burn on the 1.5 m diameter combustion flat iron plate. The combustion gas containing carbon black from the inside lined with brick row hood to collect, then the tube reaches the deposition device by bending (bending 1/4) and through fire lamp. In order to control the properties of carbon black produced, should ensure vicinity of the gap between the combustion and exhaust cover plate, the main raw material for the incomplete combustion. In slightly into the inside of a conduit, the combustion in the event of lack of oxygen warm solution, and thus form larger carbon black particles, because of these reasons, the composition of a wide range of particle size distribution, the main features of coarse particles. Since the particles between the disk and the combustion exhaust hood gap formed only a small portion can be in contact with oxygen in the air part, so only a small amount of these carbon black surface oxides, the corresponding neutral pH, and the volatiles were minimal.

Gas black carbon black processing line/carbon black production line technology

The raw material is heated to vaporized hydrocarbons, and then by the pyrophoric gases (supplied with energy) as a carrier to the burner, the carbon black in the bat-shaped issued burner lot fan-shaped flame is generated. Since each beam are small and the combustion flame in air, the formation of carbon black, and lamp black production process is very different (incomplete combustion). In this very fine carbon black particles, depending on the type, the average particle diameter can get between 10 ~ 30nm, gas black average particle diameter is about 13 nm. The combustion flame, is filled with water of a slowly rotating drum, the drum is deposited on the carbon black, the carbon black in blown away by blown, when the temperature is still high, the new generation of carbon black in contact with the oxygen in the air, Then partially oxidized to form a large number of acidic groups, the corresponding gas black acidic range between pH values and can obtain about 6% volatile matter, on behalf of its surface oxide content.

Channel black carbon black processing line/carbon black production line technology

This production process using natural gas as raw materials, similar gas combustion process with a process gas channel black production process, natural gas combustion, many fan-shaped flame issuing, black similar products obtained with gas, but the difference is here used flat water-cooled U-shaped groove as a settler carbon black. Because of the ecological and economic reasons, many years ago the carbon black producers stop using this method. Black and gas production will not impact on the environment, and this process is still in use gas blacks.

Furnace black carbon black processing line/carbon black production line technology

Black is the gas produced in the open air, but furnace black production process is in a closed furnace under hypoxic conditions carried out. Not using a lot of bundle a small fire, but a large group of flame to oil as raw material, and adding combustible gas so as to reach the desired temperature in the furnace. Change furnace black production process conditions needed to obtain the black pigment. For example: Under different conditions, the carbon black can achieve a broad range of average particle diameter, as small as from 80 nm to 15 nm, more until gas black as fine to small particles. But for the same particle size, gas furnace black and black is still a difference, mainly surface chemistry is different. Furnace black product is rough, an average particle diameter of 40nm. In addition, when using furnace black production process, adding a small amount of a basic compound or other additives to change the type and degree of aggregation of aggregates, thereby to obtain high structure carbon black or low structure.

Since furnace black is almost lower than atmospheric pressure and less than atmospheric conditions produced. So most of them lack the acidic surface oxides, but it has found alkaline reacting pyrone structure mentioned earlier. On furnace black alkaline pH, because the carbon black is generated upon termination of the injection of cold water was added to quench the alkaline earth, and a basic salt is added to reduce the structure. Further, if this is no longer subjected to oxidation treatment furnace black, the lower parts of its volatile content.

Shanghai Clirik Machinery devoted to provide carbon black processing and grinding solution. We have many successful cases over 20 countries. For more detail on carbon black processing line and production line technology, please leave a message or chat with our one line service now! Our engineers will design the most suitable solution for your project. Shanghai Clirik Machinery welcomes your visit and research!

Shanghai Clirik Machinery Co., LTD

Should you have any questions, please do not hesitate to contact me.

Phone: 0086-21-20236178  008613917147829

E-mail: sales@clirik.com

http://www.carbonblack-process.com

http://www.dolomitegrindingmill.com

http://www.limestonegrindingmill.in

http://www.calciumcarbonategrinding.com

http://www.baritegrindingmills.com

http://www.gypsumgrindingmill.in

Carbon black grinding mill to make carbon black into micro powders

HGM series carbon black grinding mill makes carbon black into micro powders. HGM series carbon black grinding milladopts GCr15SiMn for Ring and Roller, the discharge size of carbon black can get 5 micro, and adjust from 74 micron to 5 micron according to practical needs. So far, it is best carbon black grinding mill for carbon black micron powder making.

HGM series carbon black grinding mill models:  HGM80, HGM90, HGM100, HGM125, and HGM168

——finished production fineness: 30meshes~2500meshes, 5-74 micron

HGM series carbon black grinding mill components

HGM carbon black grinding mill/grinder mill consists of bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse dust cleaner system, high pressure positive blower, air compressors and electrical control systems.

HGM series carbon black grinding mill advantages:

1.High Efficiency.

Under the same finished final size and the same motor power, the capacity of the machine is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

2.Long lifecycle of spare parts.

The ring and roller are forged by special material with high utilization,

3.High safety and reliability.

As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

4.High fineness, flexible adjustment.

The final fineness of the grinding materials can be adjusted between 30meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

5.Environment-friendly.

Shanghai Clirik Machinery Co., LTD

Should you have any questions, please do not hesitate to contact me.

Phone: 0086-21-20236178  008613917147829

E-mail: sales@clirik.com

http://www.carbonblack-process.com

http://www.dolomitegrindingmill.com

http://www.limestonegrindingmill.in

http://www.calciumcarbonategrinding.com

http://www.baritegrindingmills.com

http://www.gypsumgrindingmill.in

Carbon Black Grinding Machine and Carbon Black Powder Grinding Technology

Carbon black (subtypes are acetylene black, channel black, furnace black, lamp black and thermal balck) is a material produced by the incomplete combustion of heavy petroleum products such as FCC tar, coal tar, ethylene cracking tar, and a small amount from vegetable oil. Carbon black is a form of paracrystalline carbon that has a high surface-area-to-volume ratio, albeit lower than that of activated carbon. Carbon black is widely used as a model compound for diesel soot for diesel oxidation experiments. Carbon black is mainly used as a reinforcing filler in tires and other rubber products. In plastics, paints, and inks carbon black is used as a color pigment.

Carbon Black Grinding Machine:

Models: HGM80, HGM90, HGM100, HGM125, HGM1680L

High output size: 325 mesh~3000 mesh

Capacity: 0.5~30 T/H

Carbon Black Powder Grinding Technology
The Carbon Black Grinding Machine mainly consist of hammer crusher , main unit, Frequency conversion classifier, powder collector, pulse dust cleaner,high pressure positive blower, air compressor, muffler, electrical apparatus control system, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler. -

Carbon Black Grinding Machine Manufacturer
Shanghai Clirik Machinery Co.,Ltd is the professional Carbon Black Grinding Machine manufacturer, devoted to the Carbon Black powder process more than 10 years. And our company have gotten the ISO9001:2008, and the HGM Carbon Black Grinding Machine passed the CE certification. If you are interested in Carbon Black Grinding Machine, we are welcoming to your visiting.
